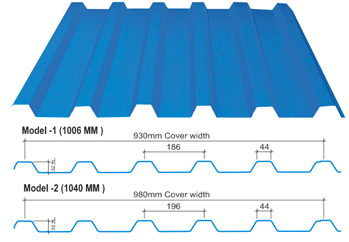

Clad profile(Model-1) is strongest profile, it provides aesthetic look to the buildings.
Available in Pre painted Galvanised steel, Bare Galvalume steel & Colour Coated Galvalume steel.
Available in thickness of 0.47 MM,0.50 MM,0.55 MM & 0.60 (All thickness are TCT(Total Coated Thickness)
Recommended Roof pitch 3` (1 in 20 or 5 %).
Base Steel | Metallic Coating | Color Coating | Weight (kg/m) | |||
---|---|---|---|---|---|---|
Strength (Mpa) | Thickness (TCT) mm | Clad 930 / 980mm cover width |
Rib 1020 mm cover width |
Clip Lock 430mm cover width |
||
G550 High Tensile | 0.47 0.50 0.55 0.60 |
Zinc Aluminium Alloy Coated AS 1397 |
Bare-Al Zn Polyester Super Polyester PVDF |
4.57 / 4.25 4.86 / 4.52 5.34 / 4.97 5.84 / 5.42 5.07 / 4.72 5.58 / 5.18 6.08 / 5.65 |
4.20 4.45 4.90 5.35 4.60 5.05 5.57 |
4.95 5.25 5.75 6.30 5.35 6.03 6.48 |
G300/240 | 0.50 0.55 0.60 |
Galvanised IS 277 |
